Diagnostics Dock

The Diagnostics Dock's six tabs, the project resource popover and Running processes, reviewing and redacting a diagnostics report, GPU settings and crash fallbacks, and the cloud-synced folder warning.

Updated
Reviewed

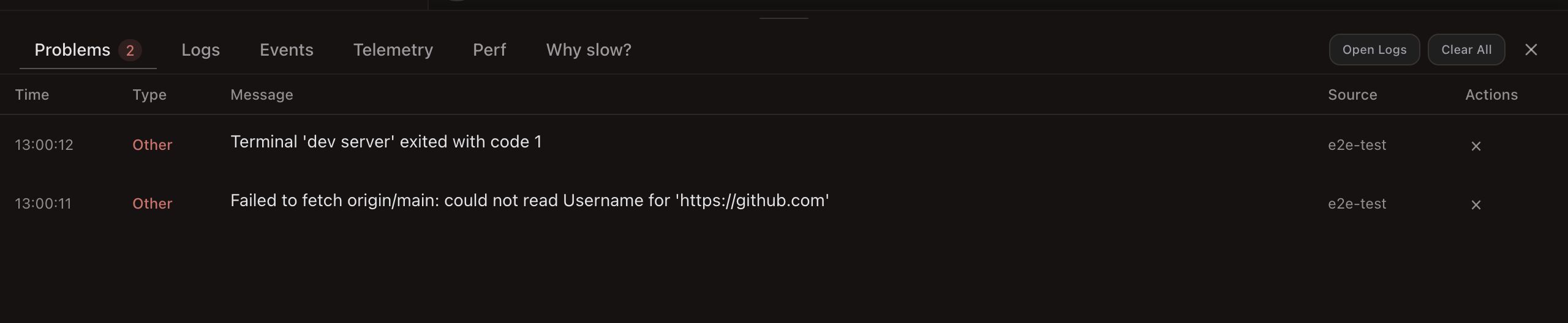

The Diagnostics Dock

The Diagnostics Dock is a resizable panel along the bottom of the Daintree window. It is where the app tells you what it is doing and why, without you having to leave it. Six tabs sit behind one set of controls.

Problems has per-row dismiss controls and a Dismiss all action.
TabWhat it shows
ProblemsActive app errors, with a count badge on the tab itself.
LogsA live, filterable stream of main-process logs.
EventsA live IPC event timeline with payload detail.
TelemetryWhat Daintree has recorded through its telemetry pipeline this session.
PerfLive frame and layout metrics, plus the CI budget table. Badged with the number of failed budgets.
Why slow?A single snapshot answering "what is Daintree spending resources on right now".

Opening the Dock

The toolbar carries a Problems button with an AlertCircle icon. It shows a red dot when there are undismissed errors, and a separate small amber pip in the opposite corner when file watching has degraded (see File watching degraded). Clicking it toggles the dock.

ActionShortcut
Toggle the Diagnostics Dock Control-Shift-J Control-Shift-J Control-Shift-J
Open the dock to the Logs tab Control-Shift-L Control-Shift-L Control-Shift-L
Open the dock to the Problems tab Control-Shift-M Control-Shift-M Control-Shift-M
Note
Those are literal Ctrl chords, on macOS too, not Cmd. The diagnostics family deliberately sits on Ctrl so it stays out of the way of the Cmd-based application shortcuts, and J rather than D because Shift-Command-D Control-Shift-D Control-Shift-D is now Open changes and would collide on Windows and Linux, where Cmd rows collapse onto Ctrl.

Only those three actions have default bindings. Events, Telemetry, Perf, and Why slow? are reached by opening the dock and clicking the tab. There is no native menu entry for diagnostics: the toolbar button and the shortcuts are the two ways in. All three actions are also in the action palette (Shift-Command-P Control-Shift-P Control-Shift-P ); search for "diagnostics". For the full reference, see Keyboard Shortcuts.

Tip
The dock auto-opens to Problems when the first new error appears. It fires only when the dock is closed and the error count goes from zero to one or more. Dismissing every error does not auto-close it again.

Problems Tab

A table of active app errors with columns for time, type, message, source, and actions. Every error is typed: Git, Process, File, Network, Config, or Other.

Click a row to expand it. The full error renders in a preformatted block with a Copy button that puts the whole thing on your clipboard: message, type, timestamp, source, details, and context. Some errors carry a recovery hint marked with a lightbulb. Transient errors get a Retry that re-runs the failed operation; once the same error fingerprint has recurred enough times, Retry stops being offered (see When Parts of the UI Fail). Every row has a Dismiss (×).

Render-time exceptions caught by an Error Boundary land here too, each with a copyable correlation ID matching the Sentry event ID.

The toolbar has two actions: Open log file, which opens the raw log file in your system editor, and Dismiss all, which dismisses every active error.

Logs Tab

A virtualized, live view of the Electron main-process logs. The filter bar has a debounced search input, four severity buttons (Debug, Info, Warn, Error) each with a count badge, and a Sources dropdown listing every module that has logged this session, multi-select, with per-source counts. A Clear button appears whenever a filter is active.

Each entry shows an HH:MM:SS timestamp (the full ISO timestamp is in the tooltip), a colored severity badge, the source module in monospace brackets, and the message. Consecutive duplicates collapse behind an ×N badge so a noisy producer can't flood the view. Hovering reveals a Copy that copies a formatted markdown block with app version, Electron version, and platform attached, ready to paste into a bug report. Entries carrying a structured context payload get a chevron that expands it.

Auto-scroll pins the view to the newest entry. Scroll up and the boundary freezes; a floating ↓ N new button counts what arrived while you were reading. Click it to jump back to the bottom and re-enable auto-scroll.

At the top of the tab, the last 100 lines from the previous session appear in their own Previous session card, so you can line up a current symptom against whatever fired just before the last shutdown without opening a second log file. The card is hidden while a search term is active, since a search is a request to look at one thing rather than at the boundary.

Toolbar actions: an Auto-scroll toggle, Open log file, and Clear logs (gated by a confirmation, so a stray click doesn't wipe history you wanted for a report).

For log files on disk, verbose logging, and per-module log levels, see Accessing Logs.

These are this machine's logs. For a remote host, Settings > Hosts shows its connection status with ssh's own error, and a Linux host's service logs to its user journal; see Logs and Status Files.

Events Tab

A live IPC event timeline in a split layout: events in chronological order on the left, the full detail of the selected event on the right, with a filter bar across the top. This is the tab for debugging timing between processes, inspecting event payloads, or working out how two parts of the app talk to each other. Its toolbar Clear events wipes the buffer behind a confirmation.

Telemetry Tab

Shows what Daintree's telemetry pipeline has recorded in this session. If you have telemetry set to Off (which is the default), this is where you can confirm that for yourself rather than taking it on faith. See Telemetry and privacy for the levels and what each one sends.

Perf Tab

Three live renderer metrics, each tinted amber at a warning threshold and red at an alert threshold:

MetricWarningAlert
FPSbelow 50below 30
Long frames over the last 30 s1–45 or more
Layout shift over the last 30 s (CLS)0.10–0.240.25 or more

Below the live tiles is the CI budgets table: the performance budgets the project holds itself to, each row marked Within budget or Over budget with the reason. The tab's badge is the number of failed budgets. The table is populated from a local budget report, so on a normal install it sits empty until you have run the performance harness from source.

The live metrics stop updating while the window is backgrounded, because a throttled background renderer produces numbers that mean nothing.

Why slow?

The largest of the six panes, and the one to open first when Daintree feels sluggish. Its in-panel header reads "Why am I slow?". It gathers a single snapshot across four groups:

  • Resource profile: the current profile, the profile the system is heading toward, the raw pressure score, and any CPU speed limit the OS has imposed, plus badges naming the specific pressures that are active. See Automatic resource management for what the profiles change.
  • Rendering & throttle: whether focus throttling is engaged, how many terminals are open, and how many of them hold a live WebGL context versus the DOM renderer.
  • Memory: Daintree's own memory against the memory of the workloads your terminals launched, with process and terminal counts.
  • PTY & worktrees: queued terminal bytes, paused PTYs, pty-host event-loop lag at p99, worktree monitors, git fetches in flight, and a worker summary: total queue depth across the persistent workers, with any degraded worker named.

When nothing is wrong the pane says so plainly: "Nothing is slowing Daintree down right now." The snapshot refreshes every 5 seconds and there is a manual Refresh; if a refresh fails, the header says how old the data you're looking at is rather than showing you stale numbers as though they were current.

Resizing the Dock

Drag the handle along the dock's top edge. The default height is 256 px, the minimum is 128 px, and the maximum is half the viewport. Double-click the handle to reset to the default.

The handle is a keyboard-reachable control: focus it and use ↑/↓ to adjust in 10 px steps (hold Shift, or use PageUp/PageDown, for 50 px), Home and End for the minimum and maximum, and Enter or Space to reset. Daintree remembers your height and restores it next time.

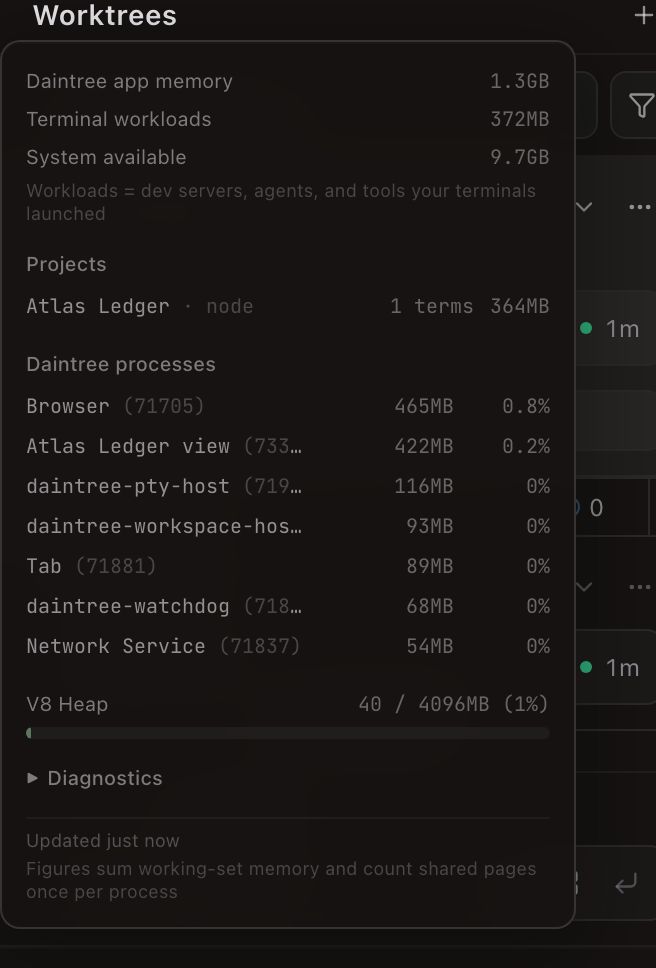

The sidebar resource badge

Separate from the dock, the resource badge at the bottom of the sidebar reads, for example, 2 agents working. Click it to see memory usage; the resting badge does not show a memory total. Its popover has three summary rows:

  • Daintree app: the app's own processes.
  • Terminal programs: everything your terminals started.
  • Available on this machine: what's left on the machine.

On Linux, Available on this machine uses the kernel's MemAvailable reading when Electron provides it, including memory the kernel can reclaim from cache. It isn't just currently unused RAM. If Electron does not provide that reading, Daintree falls back to free memory.

The Terminal programs row covers dev servers, agents and tools your terminals started. The project breakdown helps locate the larger consumers. Shared process memory can be counted more than once, so these totals can run high. If the process table can't be read, the row says so and shows the last good reading rather than a fabricated zero.

Expand Diagnostics for Daintree's process list, memory and CPU readings, and renderer project labels. Running processes opens a separate view of app processes and terminal programs with controls to stop a process or close a terminal.

Note
Those project names live in this popover, not in your operating system's process list. Activity Monitor and Task Manager show Daintree's renderers by their generic Electron process names. If you go looking for "my-api-server" in Activity Monitor you won't find it; open the memory badge instead.

For machines you use as remote hosts, the Hosts overview shows each one's CPU, memory pressure and observed agents side by side.

Download Diagnostics

When you file a bug, a diagnostics bundle hands whoever picks it up a full snapshot of your environment. Go to Settings > Troubleshooting → Download diagnostics.

The bundle is a ZIP, and nothing is written until you say so. Clicking the button collects the payload in memory (the button shows a spinner while it does, so the pause before the dialog opens isn't dead air) and then opens the Review diagnostics dialog.

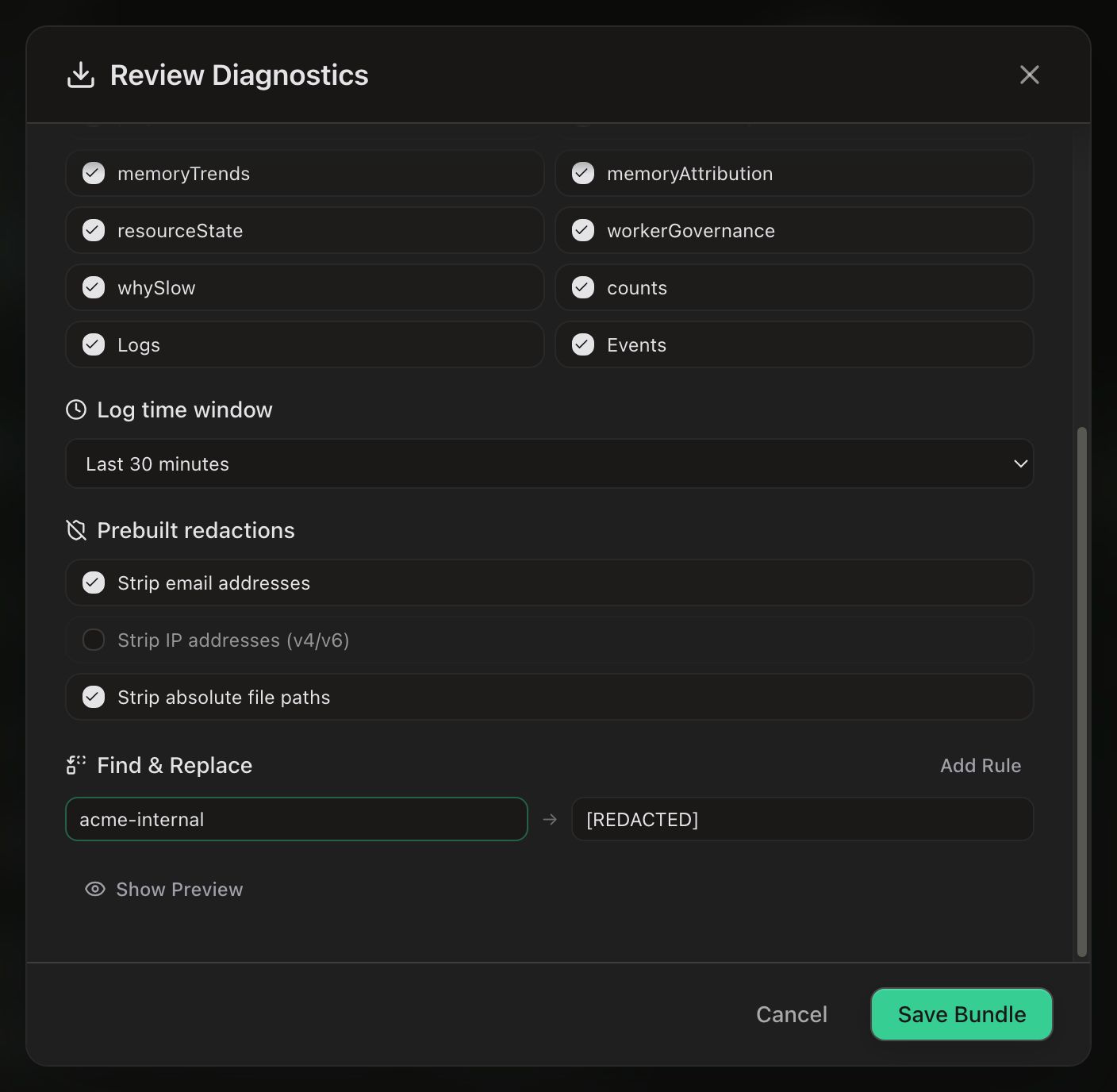

Choose redactions and included sections, then check the preview before saving the report.

What the bundle contains

The collector gathers 23 sections. All have readable labels in the review checklist. The table names those labels and, for the newer instrumentation, their payload keys.

SectionContents
Report metadataApp, Electron, Chrome, and Node versions.
App runtimePlatform, architecture, paths, environment.
Operating systemType, version, CPU, memory, load average.
DisplaysEvery monitor with bounds, scale factor, rotation.
GPUHardware-acceleration status, feature flags, ANGLE fallback state.
ProcessesMemory and CPU per Electron process.
Installed toolsPresence and version of git, node, npm, npx, gh.
GitGit configuration, with sensitive values redacted.
ConfigurationSelected store keys, deep-redacted.
TerminalsActive PTY sessions with IDs and state.
LogsRecent log entries.
EventsRecent IPC events.
Terminal flow control (flowControl)The structured flow-control snapshot: what is queued, paused, or backpressured across the terminal pipeline.
Terminal lifecycle events (lifecycleLedger)Recent lifecycle transitions.
MCP audit summary (mcpAudit)Recent MCP audit records, health counters, and authorization failures.
Project views (projectViews)Per-window project view state.
Window memory (rendererMemory)Per-renderer memory and event-loop utilization.
Memory trends (memoryTrends)Memory over time per process.
Memory by project (memoryAttribution)Which project each renderer belongs to.
Resource limits (resourceState)Current resource profile and its inputs.
Background workers (workerGovernance)Per-worker queue depth, memory, and eligibility.
Slowness snapshot (whySlow)The same snapshot the Why slow? tab renders.
Open projects and views (counts)Panel, terminal, worktree, and project counts.

Every section is included by default. Expand Sections to change the checklist, or use Include none and Include all. Uncheck anything you don't want to share and it never reaches the file.

Time window

A Logs from selector trims how far back the logs go:

  • Last 5 minutes
  • Last 30 minutes (the default)
  • Since application launch
  • Since updating to the current version, when Daintree has recorded that version boundary
  • Full log history

The window filters the Logs section only: everything else in the payload is a current snapshot and has no timestamps to filter on. Log entries that carry no numeric timestamp are kept rather than silently dropped, so narrowing the window never quietly loses something.

Redaction

Three one-click Redact options sit above the manual rules:

  • Strip email addresses
  • Strip IP addresses (v4/v6)
  • Strip absolute file paths

Each contributes bounded regex rules that are prepended to your own. They're best-effort heuristics over free text, they only run when you turn them on, and they can over-match: stripping absolute paths will also hit a path-shaped string inside a log message.

Note
There is deliberately no secret or token toggle, and known-secret scrubbing is unconditional. Every string in the payload is run through Daintree's secret scrubber before the review dialog even renders, unconditionally and with no way to switch it off. An opt-in toggle would imply the scrubbing was optional. It isn't, but a pattern-based scrubber cannot recognize every arbitrary secret. Review the preview before sharing. See Secret scrubbing.

Below the presets is a Find and replace editor for anything specific to you: a client name, an internal hostname. Each row is a match and a replacement defaulting to [REDACTED], and each can be a plain substring or a regular expression. A pattern that won't compile is skipped rather than throwing. Rules apply to the JSON payload and to every log file packed into the ZIP, so a path you redact in one place stays redacted in the other.

Preview and save

The Report preview stays visible while you choose sections and redactions. Active rules show match counts, replacements are marked in the preview, and Next replacement moves through them. Save report opens a native save dialog defaulting to daintree-diagnostics-{ISO-timestamp}.zip. The ZIP holds diagnostics.json plus up to six log files: daintree.log and its five rotated siblings. On macOS and Linux the file is set to owner-only permissions before the dialog returns, and Daintree reveals it in your file manager.

Once the file is written, a toast offers Continue to GitHub issue, which opens a prefilled issue with the environment details already filled in. Drag the ZIP into it. The two steps stay separate on purpose: the file exists on your machine first, so you can open it and read it before deciding to attach it to something public.

Note
Nothing touches disk until you click Save report. The review dialog lets you choose and redact the contents, and its preview lets you check the result. Close the dialog and the collected payload is discarded.

Hardware Acceleration

The Hardware acceleration toggle lives in Settings > Troubleshooting. Changing it restarts the app.

Disabling it yourself

If you see blank panels, black rectangles where content should be, or rendering glitches that survive a restart, turn hardware acceleration off. The setting reads "Uses GPU to improve rendering performance. Disable if you experience blank panels or rendering issues. App restarts on change."

A flag you set yourself is respected indefinitely. Daintree will never quietly turn acceleration back on because a new version shipped.

Automatic disable after GPU crashes

Daintree counts GPU process crashes in a sliding 5-minute window. The response is two-tiered.

  1. First crash: soft fallback. Daintree writes an ANGLE-fallback flag and relaunches so Chromium comes back on a different GPU backend.
  2. Three crashes in the window: hardware acceleration off. Daintree writes gpu-disabled.flag, records that the flag came from a crash rather than from you, and relaunches with the GPU disabled. The setting's subtitle then explains that acceleration was disabled after repeated crashes.

The crash-loop guard gates that relaunch, so a hard crash loop can't turn into an infinite restart cycle. The window slides, so clean operation decays the strike count on its own; there is no reset action to find.

Note
A crash-written flag is retried once per app version. If the crashes came from an Electron or driver bug, the fix would otherwise never reach the people it was written for, because the flag outlives the update. A flag you set in Settings never auto-retries.

The soft fallback is Linux + Wayland only

The ANGLE/Vulkan switches are only applied on Linux under Wayland, where multi-GPU laptops are the common failure. Everywhere else the fallback relaunch would change nothing, so it is skipped and the first crash simply counts toward the three-strike threshold instead of burning a session restart. In practice that means: on macOS, Windows, and Linux X11 there is no tier 1. Three GPU crashes in five minutes turn acceleration off.

While the soft fallback is active and the full disable hasn't fired, the Troubleshooting tab shows a warning under the toggle explaining that the GPU is running in ANGLE/Vulkan fallback mode after a crash and that toggling hardware acceleration off and back on restores the default backend. That indicator is gated to Linux + Wayland, so a leftover flag from a session on a different display server never shows a misleading warning.

Note
If hardware acceleration was auto-disabled, update your GPU drivers or your OS first, then turn it back on and see whether the crashes return. Re-enabling clears the flag and restarts the app.

Cloud-Synced Folder Warning

When you open a project, Daintree checks whether it sits inside a cloud-synced folder. If it does (iCloud Drive, Dropbox, OneDrive, or Google Drive), a persistent warning toast titled Cloud Sync Folder Detected names the service and stays up until you dismiss it.

Why this matters

Cloud sync and git use incompatible models of file access. Running a repository inside a synced folder causes real, reproducible problems:

  • Lock file conflicts. Git uses .git/index.lock for mutual exclusion. Sync daemons grab locks on it, producing Unable to create '.git/index.lock': File exists during ordinary operations.
  • Index and ref corruption. Sync clients observe intermediate write states and create conflict copies. These silently corrupt repository state, and branch refs can revert with no warning.
  • I/O bottlenecks. git checkout, git rebase, and npm install mutate thousands of files quickly. The sync daemon tries to process every event in real time, which spikes CPU and visibly slows terminal output.
Warning
Daintree uses git worktrees to run agents in parallel, and worktree metadata stores absolute local paths (for example .git/worktrees/<name>/gitdir). Sync a worktree-enabled repository between machines and those paths won't match, so the worktrees break immediately. This is the worst failure mode for Daintree users in synced folders.

Dismissing it

Don't Show Again suppresses the warning for that project, saved to the project's settings so it stays gone when you reopen it. Dismissal is per-project and per-machine; another project in a synced folder still warns. There is no UI to bring it back: removing and re-adding the project resets all its per-project preferences, including this one.

Detected paths

Entries with * are prefix patterns, because providers append an account name or organization suffix to the folder name.

  • ~/Library/Mobile Documents/ (iCloud Drive)
  • ~/Library/CloudStorage/Dropbox*/ (Dropbox)
  • ~/Library/CloudStorage/OneDrive*/ (OneDrive)
  • ~/Library/CloudStorage/GoogleDrive-*/ (Google Drive)
  • %USERPROFILE%\OneDrive\ and %USERPROFILE%\OneDrive - *\ (OneDrive)
  • %USERPROFILE%\Dropbox\ and %USERPROFILE%\Dropbox (*)\ (Dropbox)
  • %USERPROFILE%\My Drive\ (Google Drive)
  • ~/Dropbox/ (Dropbox)
  • ~/OneDrive/ (OneDrive)

Linux detection is case-sensitive. iCloud Drive and Google Drive paths aren't detected on Linux.

If you see the warning, move the project somewhere local: ~/Projects/, ~/Developer/. For access from more than one machine, use a git remote rather than filesystem sync.

Source reference: bundle collection, review and redaction controls, and the resource badge.
